Bulldozers Parts in Delaware - Bulldozers, also referred to as dozers, are a type of tractor equipped with a dozer blade. Many models are known as crawler tractors, operating on a continuous track instead of using wheels; however, wheeled models are available. The dozer blade attaches to the front of the bulldozer to push materials easily and efficiently. Alteration projects and construction sites rely on dozer blades to transport gravel, dirt and other materials. Big, metal teeth known as “the ripper” are located on the back of the bulldozer, used for breaking up tough, compressed items.
Specifics
The tracks of a typical bulldozer give it superior traction and maneuvering capabilities on rough, uneven or unstable ground and the specialized transmission system allows the bulldozer to operate with increased tractive force. Sinking into unstable environments is prevented as the track width evenly distributes the weight of the machine. Swamp tracks refer to tracks that have increased widths, suitable for specific applications. Bulldozers are often utilized in land clearing applications, road construction, mining operations and other jobs that require stable and powerful equipment to transport large volumes of material.
Bulldozers operating on a wheeled system usually have four wheels, moved along by a 4-wheel-drive system and a hydraulic, articulated steering system. The dozer blade is mounted in front of the articulation joint and is operated on a hydraulic system, rather than mechanical.

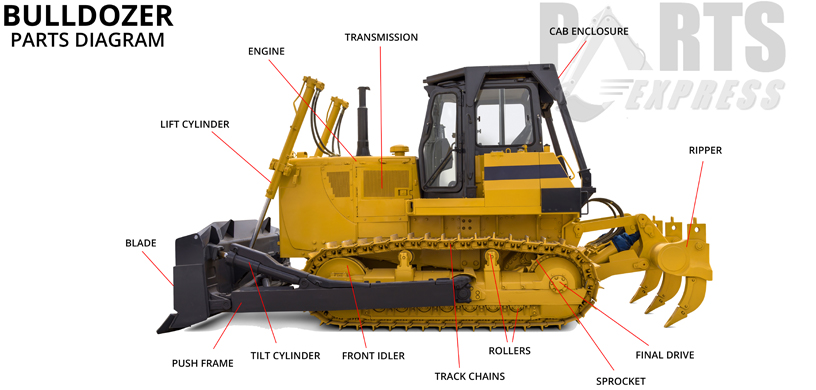

The main tools that distinguish the dozer from other construction machine are the dozer blade and the ripper.
The Dozer Blade
The bulldozer blade consists of a sizeable metal plate that is situated at the front of the machine. Its purpose is to push heavy objects and material. Gravel, dirt, snow and rubbish are commonly pushed into new locations with bulldozers. Typically, there are 3 different kinds of dozer blades including the straight blade, the semi-U blade and the universal blade.
The universal or U blade features large wings on the sides of the tall, curved blade to transport more material. The S blade aka the straight blade features zero side wings or lateral curve and is used for fine earth grading applications. The semi-U or SU blade features a shorter, slightly less curved blade with size wings that are smaller than those on the U blade. Generally, the semi-U blade is used to push large rock piles or boulders into place.
Dozer blades commonly attach horizontally or at an angle to the tractor. Dozer blade angles are capable of being adjusted via tilt cylinders. The dozer blade is sometimes sharpened to allow for cutting of objects, such as stumps or roots. The blade on an angledozer is pushed forward on one side to allow material to be pushed out of the dozer’s path. The angledozer is commonly used for snow removal on roads and highways.
Many bulldozers come equipped with a bull blade. A bull blade is a reinforced centre section of the bulldozer. This feature allows the machine to push another heavy piece of equipment known as a scraper for earthmoving applications.
Military vehicles also utilize dozer blades. Many different military vehicles including artillery tractors, combat engineering vehicles and battle tanks utilize dozer blades. The dozer blade helps the battle tank maneuver items and mines to create combat positions or dig shelters. The dozer blade can help create protective barriers against explosives and artillery.
The Dozer Ripper
The shank or dozer ripper is the substantial tool situated on the bulldozers’ back with long teeth. Dozer rippers are available in multiple or single shank options. The single shank design is also known as a giant ripper and is preferred for large, very dense projects. Multi-shank rippers refer to multi-shank designs.
The boot refers to the tip of the shank and consists of a detachable metal piece. This enables the boot to be easily replaced when it becomes broken or worn down instead of having to completely change the shank.
Solid objects including compact earth, concrete or rock can be broken up into tinier pieces thanks to the dozer ripper, creating material that is easier to transport by the dozer. This allows for quicker project completion.
The dozer ripper is used in farming to break up earth and rock for better plowing and planting. In certain locations in New Zealand and Italy, the dozer ripper helps to access ancient lava flows that are rich in nutrients and normally would not be able to be farmed due to the density of the ground. The top layer of lava rock is loosened up with the ripper to create farmable land.
Bulldozer Adaptations
Adaptations to the bulldozer over the years have enabled it to become useful for numerous applications.
The initial bulldozer design was too big to work in confined locations such as mines. These limitations led to more compact bulldozer designs and models. Smaller, light bulldozer models are commonly called calfdozers.
In snow areas, such as ski hills, a lighter version of the bulldozer is used for snow removal and preparing areas for winter sports.
More common bulldozer adaptations resulted in the loader tractor. The loader tractor consists of replacing the dozer blade with a sizeable bucket and using hydraulic arms for raising and lowering. This adapted bulldoze is now often referred to as a Drott, trackscavator or track loader and frequently used in loading rocks, gravel and earth into dump trucks.
A lesser-known bulldozer attachment is called the stump buster. The stump buster attachment is secured to the rear portion of the dozer. The horizontally protruding single spike is used to split up tree stumps into smaller more manageable pieces for removal. These are used primarily by bulldozers working on land clearing projects. In those circumstances, the bulldozer also has a brush-rake blade.
The original bulldozer design is used ground leveling, road carving, deforestation and earthmoving applications. Large bulldozers are mainly used to flatten terrain for construction preparation. The construction is completed mostly by smaller bulldozers and loader tractors.
Origins
In 1923, the first bulldozer was designed when farmer James Cummings joined forces with a draftsman named J. Earl McLeod. The dozer blade was the initial design they created and was built to be attached to an existing tractor in order to plow fields. The first bulldozer was built soon after and the prototype is can be seen in Morrowville, Kansas’ city park. McLeod and Cummings filed a US patent on the bulldozer attachment later that year and it was granted in 1925. At the time, it was common for tractors to run on a track system. In fact, it was this earlier version of the tractor, with its superior maneuverability, that contributed to the creation of the armoured tank during World War I.
A variety of custom and homemade attachments started to appear in 1929 on tracked and wheeled tractors. The bulldozer attachment did not gain popularity until the middle of the 1930s. Once hydraulic cylinders were added, sometime before 1940, bulldozers began to grow in popularity and by the 1950s, the term bulldozer referred to the entire machine.
Bulldozers evolved to become stronger and bigger as their demand grew for small and large construction jobs. Eventually, many companies such as John Deere and Caterpillar began to manufactured large tracked and wheeled bulldozers. The manual transmission was replaced over time with automatic transmissions and electric motors and hydraulic cylinders eventually replaced cable winch systems. These technological upgrades created more effective and accurate control systems. These days, GPS technology geared toward bulldozing tasks has added to improved grade control.
Bulldozers began as a tractor attachment for farming applications and have grown to become one of the most useful pieces of equipment for construction, civil engineering, building and maintenance applications, mining operations and military use.
